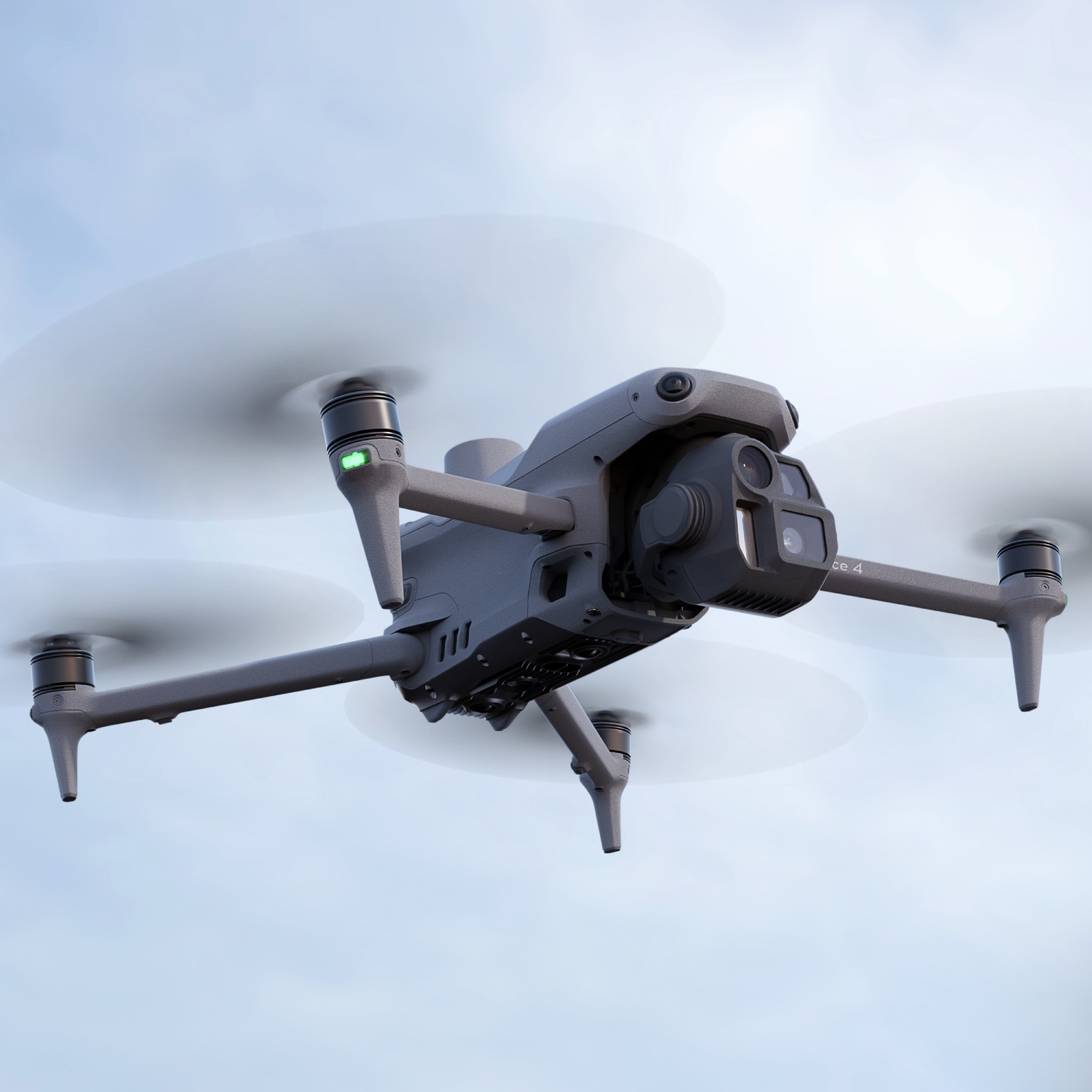

DJI Matrice 4E

Yes, when your billable output is orthos, DSMs, progress models or oblique facades, not thermal inspection. The M4E is DJI's mapping variant: 4/3-inch 20 MP wide camera with mechanical shutter, DNG RAW, 0.5 s photo interval and Distortion Correction 2.0 for photogrammetry. If the job needs radiometric thermal or night search, that's the M4T. If you need unattended Dock 3 missions, look at the M4D instead.

Upgrade when you want mechanical-shutter mapping on a 4/3 sensor, around 49 minutes endurance, integrated RTK on the airframe and O4 Enterprise transmission. The M4E adds 3-directional ortho and 5-directional oblique capture, laser rangefinder to 1800 m and factory calibration wired into Terra. If your M3E still wins the jobs you quote at the spec you deliver, keep flying it. We route honestly either way.

Match the deliverable spec. M400 plus L3 wins when the tender demands corridor LiDAR RMSE, vegetation penetration or sub-5 cm vertical accuracy at altitude. The M4E wins on cost per hectare for orthos and medium-area photogrammetry on sites the compact platform covers. The 200 g payload limit also rules out heavy Zenmuse payloads. Send us the spec and we'll tell you which aircraft actually meets it.

Genuine AU stock with AUSCORS NTRIP configured on your account, mission templates loaded for your common job types, and hands-on handover from our Melbourne team covering Pilot 2, Terra and sample outputs in your coordinate frame. You get a 12-month warranty backed by Australian Consumer Law and the same engineers on support. The aircraft leaves Melbourne configured for your workflow, not a grey-import box you set up alone.

No. Tell us the deliverable you invoice most weeks (progress ortho, corridor section, volume report) and we'll map the workflow in the conversation. Most buyers know the job type, not the finished integration spec. Send us a site and we'll fly a real mission, process the data, and hand back the output so you can judge before you buy.

Overseas direct means no Australian Consumer Law warranty path, no Melbourne handover, no AUSCORS NTRIP setup and no local repair when a job is booked tomorrow. Our price is genuine AU stock with engineers who configure the aircraft, load your mission templates and answer the phone on site. Relative savings rarely survive freight, import GST and the downtime when something needs sorting locally.

Not for routine georeferencing when you have an RTK fixed solution via AUSCORS NTRIP. We configure that at handover. For tenders with a stated accuracy spec, independent check shots remain standard QA. In GNSS-challenged segments or when the client demands network adjustment, D-RTK 3 or targeted GCPs supplement the RTK workflow. That's verification, not a workaround for missing RTK.

AUSCORS NTRIP is the default for routine jobs with reliable mobile coverage, with no base station on site. D-RTK 3 suits remote corridors and sites where you want corrections independent of the cellular network. PPK works when you log base data and post-process in Terra or your photogrammetry stack. We configure the path that matches your typical sites during handover, not every option at once.

Up to around 49 minutes on standard propellers at sea level with no wind. That's enough for a solid progress ortho or multi-directional oblique block on a medium site. Mapping productivity improves with 3-directional ortho and 5-directional oblique capture versus single-pass flying. Real coverage depends on wind, altitude, overlap settings and battery reserve policy. We model that against your typical sites during handover.

DJI Terra is the standard path and integrates directly with factory calibration and RTK tags from Pilot 2. The M4E also works in Pix4D, Metashape, DroneDeploy and similar platforms that read embedded geotags and DNG RAW. Landmapper accelerates mapping deliverables (orthos, contours, volumes) with less manual cleanup when that's your weekly output. We recommend what fits your invoiced deliverables, not an upsell stack you won't use.

Use the mechanical shutter on the wide camera, lock ISO in the 100–400 range and keep shutter speeds at 1/1000 s or faster for sharp imagery at mapping speed. Disable dewarping in Pilot 2 for photogrammetry. Distortion Correction 2.0 handles lens correction in the processing pipeline. We load sample mission templates with these settings during handover so your first paid job isn't a settings experiment.

Yes. RTK-georeferenced M4E orthos and obliques register with S20 or S100 handheld SLAM in the same coordinate frame. Fly the overview, walk the plant room the same week, one model. We wire this cross-platform workflow during handover when you run both on the same contract.

Standard visual line of sight operations fall under your existing ReOC and RePL framework with a site-specific risk assessment. We provide CASA-aware deployment guidance, not CASA approval. If you're planning beyond visual line of sight or recurring automated missions, build the operational approval pathway before hardware lands. CASA grants authorisations; we help you scope the case.

A 12-month warranty backed by Australian Consumer Law, with support from our Melbourne team: phone, email and the same engineers who configured your aircraft and did your handover. Training is bundled in Melbourne; other major Australian cities are available for an additional fee. DJI Care Enterprise extends accidental cover when you want it.
